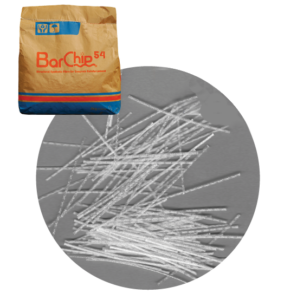

EPC® BARCHIP 54

BarChip 54 (99940178) from Elasto Plastic Concrete, is a high performance structural synthetic fibre concrete reinforcement, optimised for sprayed concrete (shotcrete).

Uses:

• For structural use in concrete, mortar and grout

Advantages:

• Comprehensive design and technical support
• Redistributes load – increased ductility / toughness
• Eliminates corrosion – long term durability
• Eliminates set-up of steel mesh
• 70% reduction in carbon footprint compared to steel
• Safer and lighter to handle than steel
• Reduced wear on concrete pumps and hoses
• Reduced cycle times and maintenance closure
• BarChip fibre is UV stabilised to resist solar deterioration
• Weather proof packaging on multi-stack UPVC pallets

Available In:

• 5 kg Bag

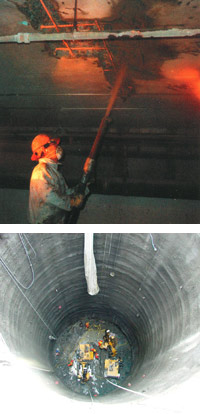

TARGET® SUPERSTICK LOW TEMPERATURE SHOTCRETE

TARGET® Low Temperature Shotcrete is made with accurately mass-batched blends of Portland cement, silica fume, sand, coarse aggregate and dry-powdered shotcrete accelerators. Shotcrete aggregates are blended to ACI 506R-90 gradation requirements and shotcretes are available in either ACI Gradation N° 2 (medium) or Gradation No.1 (fine) aggregate gradations. Other aggregate gradations can be manufactured on request.

All materials used conform to the requirements of relevant standards, including: CSA A23.1-94 “Concrete Materials and Methods of Concrete Construction”, ACI 506.2 “Specifications for Materials, Proportioning and Application of Shotcrete”, ASTM C1141 ”Standard Specification for Admixtures for Shotcrete”.

Uses:

TARGET® Low Temperature Shotcrete is used in a wide range of civil engineering and mining applications where application in low temperature is necessary. Typical areas of use include:

• Mining applications, including ground support and lining of portals, shafts, drifts,raises, loading pockets, ore passes and underground chambers.
• Ground support and slope stabilization.
• Tunnel and shaft lining.

Advantages:

TARGET® Low Temperature Shotcrete offers many advantages to owners, contractors and engineers, particularly in situations where conventional formed concrete construction would not be appropriate or cost effective. Major advantages of using TARGET® Low Temperature Shotcrete include:

• Supply of a precision mass-batched mixture produced to stringent quality control standards.
• Ease of application, particularly in difficult to access or remote locations.
• Elimination or reduction of formwork.
• Greater thickness of build-up in a single pass relative to conventional shotcrete,
• Substantial reductions in rebound.
• Reduction in construction time.
• Superior bond to (properly prepared) surfaces.
• Elimination of secondary reinforcing steel or mesh when fiber reinforcement is included in the mixture.
• High early and later age strengths and low permeability.

Available In:

• 500 kg to 1680 kg Bulk Bag/pallet
• 30 kg (66 lb) 56 Bags/pallet

TSA TARGET® SUPERSTICK® ACCELERATED SHOTCRETE

TARGET® Superstick Accelerated Shotcrete is a rapid setting quality shotcrete designed for dry process application. Aggregates used in Target Accelerated Superstick Shotcrete is blended to ACI 506R-90 gradation requirements. It is available in either ACI Gradation N° 2 (medium) or Gradation N° 1 (fine) aggregate gradations.

TARGET Accelerated SUPERSTICK® SHOTCRETE is made with accurately mass-batched blends of Portland cement, silica fume, sand, coarse aggregate and Target Set Accelerator. Fibers, both steel and synthetic can be added.

Uses:

TARGET Accelerated Superstick Shotcrete can be used in a wide range of civil engineering and mining applications. Typical areas of use include:

• Mining applications, including ground support and lining of portals, shafts, drifts,raises, loading pockets, ore passes and underground chambers.
• Ground support and slope stabilization.
• Tunnel and shaft lining.
• Construction of retaining walls.
• Rehabilitation of deteriorated infrastructure, including bridges, dams, sewers, canals and cooling towers.
• Repair of deteriorated marine structures including wharves, jetties, piles and sea walls.
• Repair of deteriorated buildings and structures such as parking structures, grain silos, pulp and paper mills and chemical handling facilities.
• Lining of swimming pools, reservoirs, canals, syphons and pipelines.

Advantages:

• Supply of a precision mass-batched mixture produced to stringent quality control standards.
• Ease of application, particularly in difficult to access or remote locations.
• Elimination or reduction of formwork.
• Greater thickness of build-up in a single pass relative to conventional shotcrete,
• Substantial reductions in rebound.
• Reduction in construction time.
• Superior bond to (properly prepared) surfaces.
• Elimination of secondary reinforcing steel or mesh when fiber reinforcement isincluded in the mixture.
• High early and later age strengths and low permeability.

Available In:

• 500 kg to 1680 kg Bulk Bag/pallet
• 30 kg (66 lb) 56 Bags/pallet
